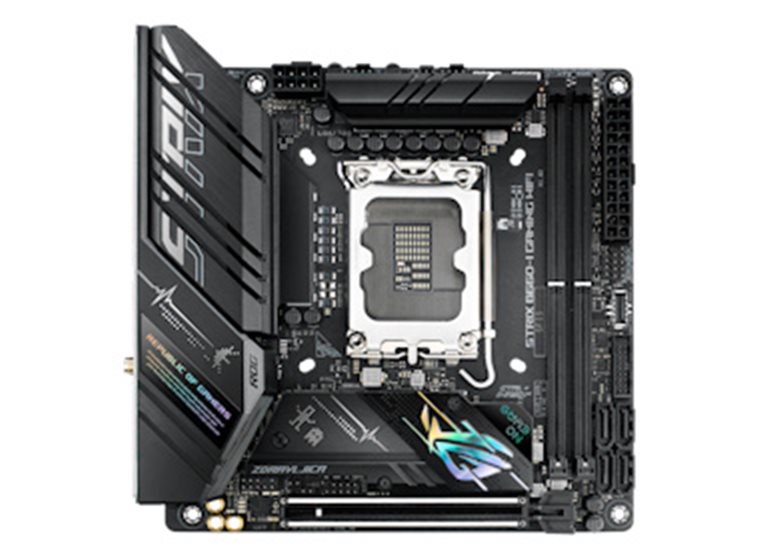

ASUS ROG STRIX B660-I GAMING WIFI/ LGA 1700/ MITX

Chipset: Intel B660 Chipset

Rozměrový formát: Mini-ITX ( 17 cm x 17 cm )
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA1700

Pozice na paměti: 2 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: XMP

Grafická karta: (na základě procesoru)

• 1 x DisplayPort
• 1 x HDMI

Zvuková karta: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Síťová karta:

• 1 x Intel I225-V 2.5Gb Ethernet
• Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Bluetooth v5.2

Rozšiřující sloty: 1 x PCIe 5.0 x16 slot

RAID řadič: RAID 0/1/5/10

SATA: 4 x SATA 6Gb/s ports

M.2: 2 x M.2 slots

USB:

• Interní:
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 headers support additional 2 USB 2.0 ports
• Externí:
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C)
• 3 x USB 2.0 ports (3 x Type-A)

Interní porty:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 headers support additional 2 USB 2.0 ports
• Miscellaneous
• 1 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x 10-1 pin System Panel header

Externí porty:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C)
• 3 x USB 2.0 ports (3 x Type-A)
• 1 x HDMI port
• 1 x DisplayPort
• 1 x Wi-Fi Module
• 1 x Intel I225-V 2.5Gb Ethernet
• 5 x Audio jacks

BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
